SMS OTP Two Factor Authentication through Identity Server

In this post, I will explain how to use SMS OTP multifactor authenticator through WSO2 Identity server. In this demonstration, I am using Twilio SMS Provider which was used to send the OTP code via SMS at the time authentication happens.


SMS OTP Authentication Flow



















The SMS OTP authenticator of WSO2 Identity Server allows to authenticate the system using multifactor authentication. This authenticator authenticates with user name and password as a first step, then sending the one time password to the mobile via SMS as a second step. WSO2 IS will validate the code and let the user sign in accordingly

Add the authenticator configuration <IS_HOME>/repository/conf/identity/application-authentication.xml file under the <AuthenticatorConfigs> section.

<AuthenticatorConfig name="SMSOTP" enabled="true">
    <Parameter name="SMSOTPAuthenticationEndpointURL">https://localhost:9443/smsotpauthenticationendpoint/smsotp.jsp</Parameter>
    <Parameter name="SMSOTPAuthenticationEndpointErrorPage">https://localhost:9443/smsotpauthenticationendpoint/smsotpError.jsp</Parameter>
    <Parameter name="MobileNumberRegPage">https://localhost:9443/smsotpauthenticationendpoint/mobile.jsp</Parameter>
    <Parameter name="RetryEnable">true</Parameter>
    <Parameter name="ResendEnable">true</Parameter>
    <Parameter name="BackupCode">true</Parameter>
    <Parameter name="SMSOTPEnableByUserClaim">false</Parameter>
    <Parameter name="SMSOTPMandatory">false</Parameter>
    <Parameter name="usecase">association</Parameter>
    <Parameter name="secondaryUserstore">primary</Parameter>
    <Parameter name="CaptureAndUpdateMobileNumber">true</Parameter>
    <Parameter name="SendOTPDirectlyToMobile">false</Parameter>
</AuthenticatorConfig>

Configure the Service Provider and Identity Provider Configuration as we normally configure for Two factor authentication. Now we will configure SMS OTP Identity provider for Twilio specific SMS Provider.

Go to ​ https://www.twilio.com/try­twilio​  and create a twilio account.

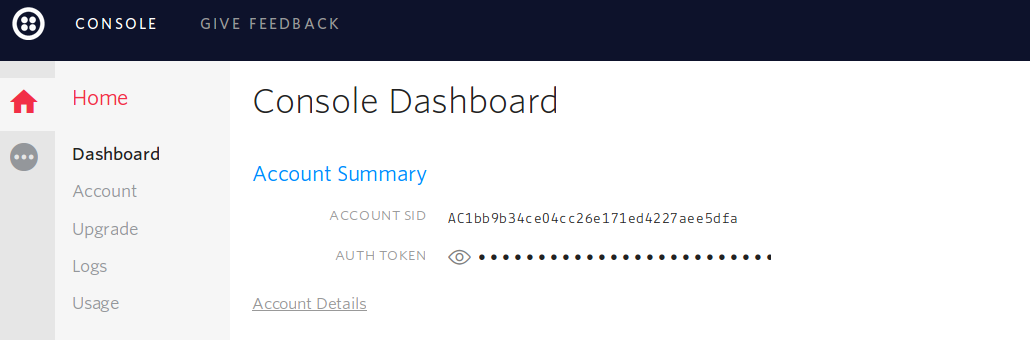

While registering the account, verify your mobile number and click on console home
https://www.twilio.com/console​  to get free credits (Account SID and Auth Token).




Twilio uses a POST method with headers and the text message and phone number are sent asthe payload. So the fields would be as follows.

SMS URL             https://api.twilio.com/2010­04­01/Accounts/{AccountSID}/SMS/Messages.json
HTTP Method     POST
HTTP Headers    Authorization: Basic base64{AccountSID:AuthToken}
HTTP Payload    Body=$ctx.msg&To=$ctx.num&From={FROM_NUM}

You can go to SMS OTP Identity Provider and configure to send the SMS using Twilio SMS Provider.

Twilio SMS Provider Config





















When authentication is happening in second step, the code will be sent to mobile no which is saved in mobile claim of  user's user profile.
If the user apply the code, WSO2 IS will validate the code and let the user sign in accordingly.
